Home / Products / Professional Amplifier / TX6K2 Pa Paging System Digital Audio Broadcast Combined Power Amplifier Series for Large Venues

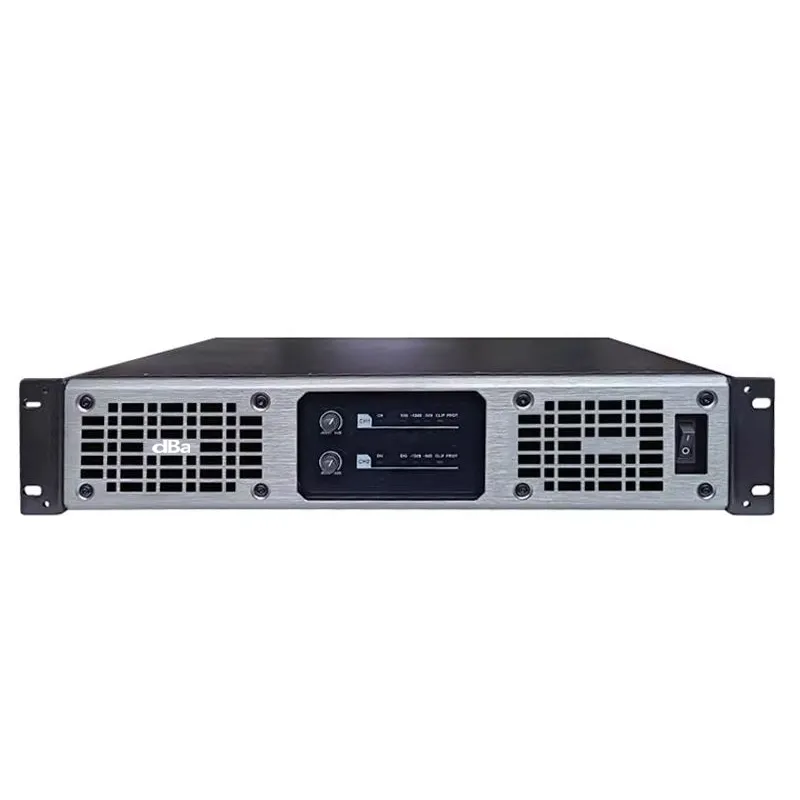

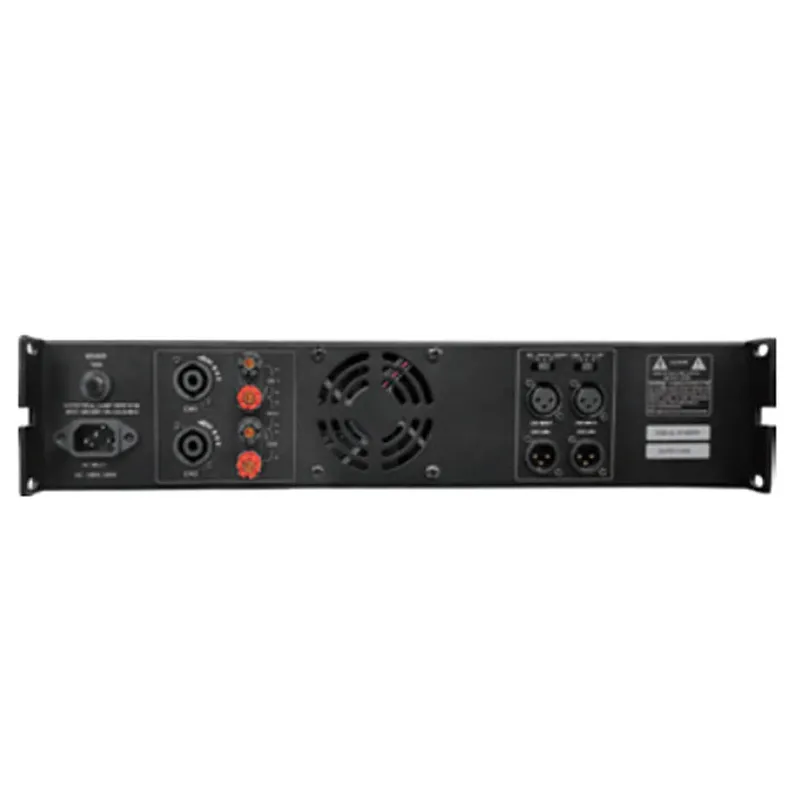

TX6K2 Pa Paging System Digital Audio Broadcast Combined Power Amplifier Series for Large Venues

1.Dual-Channel High Power, Impedance Flex

2.Ultra-Low Distortion, Sound Devotion

3.High Damping Rating, Bass Vibrating

4.Vented Aluminum Cooling, Performance Ruling

5.Versatile I/O Connectors, Connection Perfectors

6.Full-Scope Protection, Operation Perfection

7.Wide Frequency Range, Sound Reign

8.Rack-Mount Ready, Lightweight Steady

9.Step Gain Precision, Adjustment Decision

10.Class D Efficiency, Low-Waste Proficiency

Inquire Now Next Product

Model Parameters

Model	TX6K2
OUTPUT POWER(82)	1300Wx2
OUTPUT POWER(4Ω)	1500Wx2
BRIDGE POWER(8Ω)	3000Wx1
Typical distortion(20-3kHz,3dB under clipping:20-5kHz,10dB under clipping:20-20kHz,20dB under clipping,8 ohms)	0.05%
Maximum distortion(4-8 ohms20-20kHz,1dB at rated power)	0.10%
Frequency Response(8 ohas)	20-20kHz,+/-2dB
Noise(20-20kHz)	-100dB
State Headroom(4 ohms)	2dB
Damping factor(8 ohms)	300
Output circuit type	Class D
Gain sensitivity	0.775V
Input Gain(1.2V setting)	36.4dB
Input resistance	>10k ohms,balanced or unbalanced,all models
Input maximum level(0.775V setting)	+9dB
Input maximum level (1.2V setting)	+12dB
nput maximum level(15dB setting)	+15dB
Controls and LEDs(General Purpose)	AC Power Switch,Power(Green),Bridge Mono(Orange)
Front panel(each channel)	ain control,21 steps.Signal-20dB,-10dB(green), clipping(orange),PROT(red)
Rear panel(each channel)	Input gain switch:0.775/1.2/32dB
Input Connectors(each channel)	Male XLR,female XLR,3-pin terminal block connector
Output connectors(each channel)	SPEAKON,channel1,4-wire,up to two channels
Amplifier and Load Protection	Short circuitopen circuit,thermal and RF protection; on/off muteDC fault off,active inrush limiter
AC power cord set(220V)	10A
Weight	8kg/10kg
Size	W:485 mm,H:88 mm,D:350 mm
