Home / Products / Professional Amplifier / TX1000 Professional Audio, Video Professional Amplifier 1000 Watts Class D Power Amplifier 1000W AMP

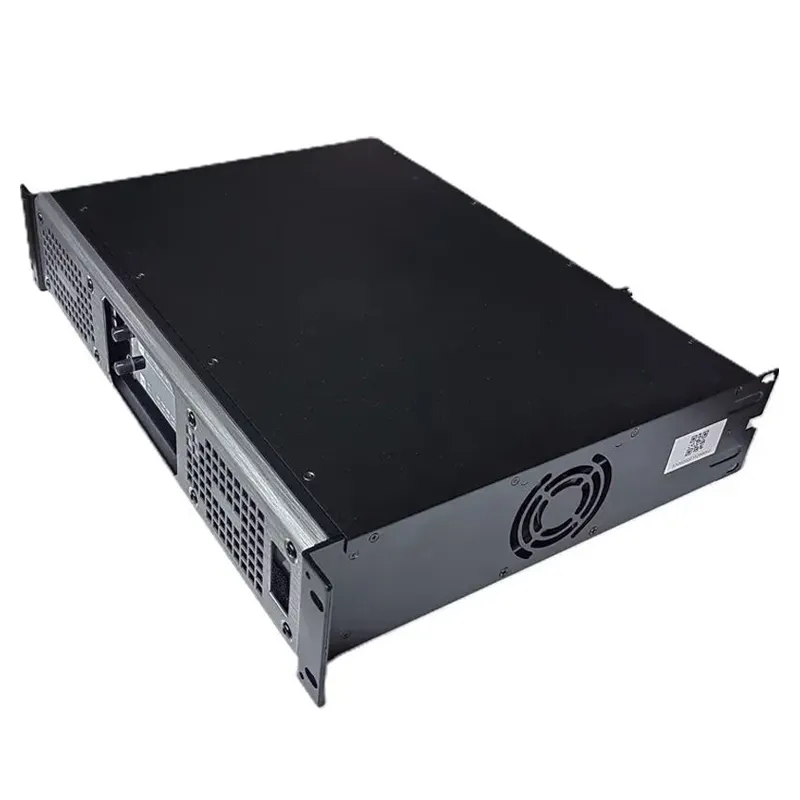

TX1000 Professional Audio, Video Professional Amplifier 1000 Watts Class D Power Amplifier 1000W AMP

1.Powerful Output, Wide Scene Adaptability:

1000W×2 (8Ω) output, 2500W in bridge mode, easily adapts to theaters, stadiums, outdoor performances, and other large-scale scenarios.

2.High-Definition Sound, Precise Detail Restoration:

0.05% ultra-low distortion + 20-20kHz full-frequency response, ensuring pure sound and accurate reproduction of all audio details.

3.Efficient & Energy-Saving, High Stability & Durability:

Equipped with Class D amplification and LLC power switch for high efficiency; multiple protections (short circuit, overload, overheating) ensure long-term reliable operation.

4.Easy Installation, Flexible Connection:

Lightweight (8-10kg) and compact (485mm×88mm×350mm); supports balanced/unbalanced input, compatible with various connection methods.

5.Professional Design, Versatile Applications:

Optimized for both fixed installations and mobile performances, ideal for theaters, stadiums, multi-functional halls, and outdoor events.

Inquire Now Next Product

Model	TX300	TX400	TX600	TX800	TX1000
OUTPUT POWER(8Ω)	300Wx2	4000Wx2	600Wx2	800Wx2	1000Wx2
OUTPUT POWER(4Ω)	500Wx2	650Wx2	900Wx2	1200Wx2	1500Wx2
BRIDGE POWER(8Ω)	1000Wx1	1300Wx1	1800Wx1	2300Wx1	2700Wx1
Typical distortion (20-3kHz, 3dB under clipping; 20-5kHz, 10dB under clipping; 20-20kHz, 20dB under clipping, 8 ohms)	0.05%
Maximum distortion (4-8 ohms, 20-20kHz, 1dB at rated power)	0.1%
Frequency Response (8 ohms)	20-20kHz，+/-2dB
Noise (20-20kHz)	-100dB
State Headroom (4 ohms)	2dB
Damping factor (8 ohms)	300
Output circuit type	Class D
Gain sensitivity	0.775V
Input Gain (1.2V setting)	36.4dB
Input resistance	>10k ohms, balanced or unbalanced, all models
Protection	Short-circuit protection,open circuit protection,overheating protection and RF protection,overload protection due to the DC fault

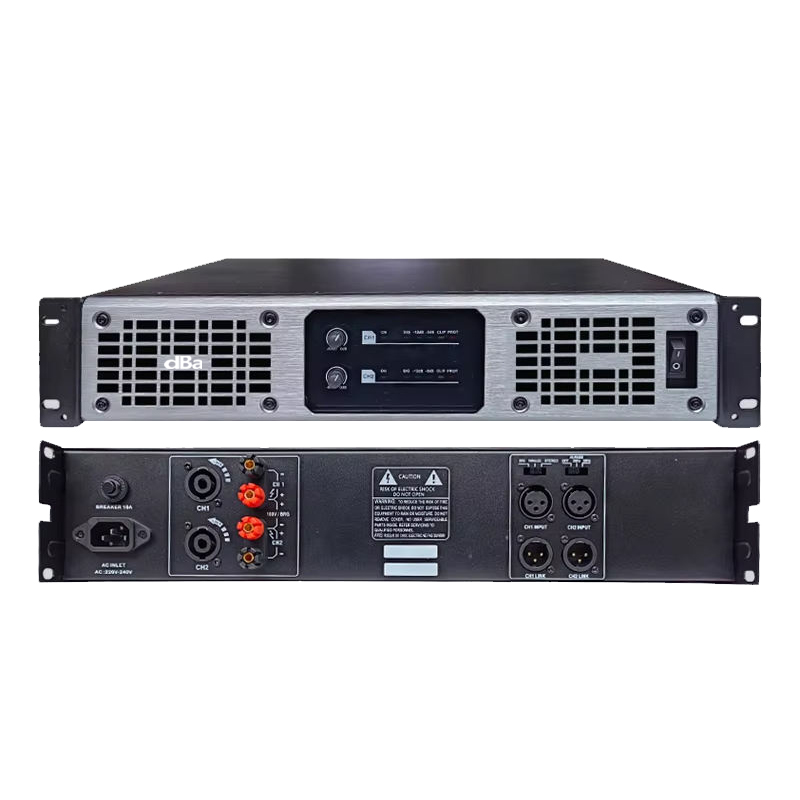

Controls and LEDs (General Purpose)	AC Power Switch, Power (Green), Bridge Mono (Orange)
Front panel (each channel)	Gain control,21 steps.Signal -20dB,-10dB (green),clipping (orange), PROT (red)
Rear panel (each channel)	Input gain switch: 0.775/1.2/32dB
Input Connectors (each channel)	Male XLR, female XLR, 3-pin terminal block connector
Output connectors (each channel)	SPEAKON, channel 1, 4-wire, up to two channels
Amplifier and Load Protection	Short circuit, open circuit, thermal and RF protection;on/off mute, DC fault off, active inrush limiter
AC power cord set (220V)	10A
Weight	8kg 10kg
Size	W: 485 mm , H: 88 mm, D: 350 mm
