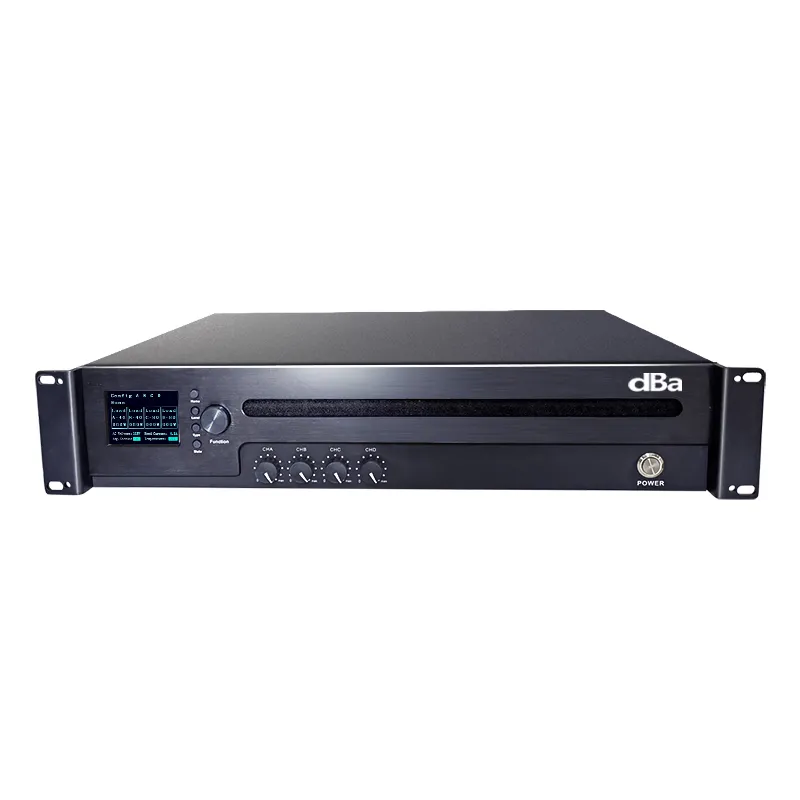

PFA8000M 4-Channel 6000W Power Amplifier with Variable Power Supply, Green Audio Power, PFC, and Solid Aluminum Heat Sink

1. ◆◆Efficient and Energy-saving:

The efficiency of digital power amplifier is usually above 80%-90%, which is much higher than the traditional analog power amplifier (Class A/B), so it has low power consumption and low calorific value, and is suitable for long-term use.

2.◆◆Low calorific value:

Low calorific value means that there is no need for a large heat sink, and the equipment runs quieter and has a longer.

3. ◆◆Sound quality performance:

The sound quality of modern digital power amplifiers has been very close to or even surpassed that of traditional analog power amplifiers, especially in the middle and high frequency bands, with clear performance and low distortion. For most users, the sound quality is enough to meet daily needs.

Inquire Now Next Product

Model	PFA8000M
The Maximum output wattage 1KHZ,1% Clipping 8ohm Power	1300Wx4
4ohm Power	1500Wx4
8ohm BRIDGE POWER (*Due to the impose restrictions on alternating current ,need to make the burst mode test)	3000Wx2
Typical case of Distortion （20-3KHZ,Under Clipping is 3dB or 20-5KHZ，Under clipping is10dB or 20-20KHZ, Under Clipping is 20dB）	0.05%
8Ohm
The Maximum Distortion (4-8ohm) (20-20KHZ Rated Power is 1dB)	0.1%
Frequency (8ohm)	20-20KHZ，+/-2dB
Noise (20-20KHZ)	<1mv
Dynamic condition for clearance (4ohm)	2dB for all items
Damping Factor (8ohm)	300
Output Circuitry	D
Input Sensitivity	0.775V
Input Transmission gain (1.2V)	36.4dB
Input lmpedance	>10KOhm, Balance or Unbalance
The Maximum electrical level (0.775V)	+9dB
The Maximum electrical level (1.2V)	+12dB
The Maximum electrical level (32dB)	+15dB
Controller and LED, Both can	AC Power control switch,Power Supply(Green),Bridge single track(Orange)
Front Panel for each channel	Gain control,21a Signal-20dB,-10dB(Green),Clipping(Orange)，PROT(Red)
Back Panel for each channel	Gain control Switch:0.775/1.2/32dB

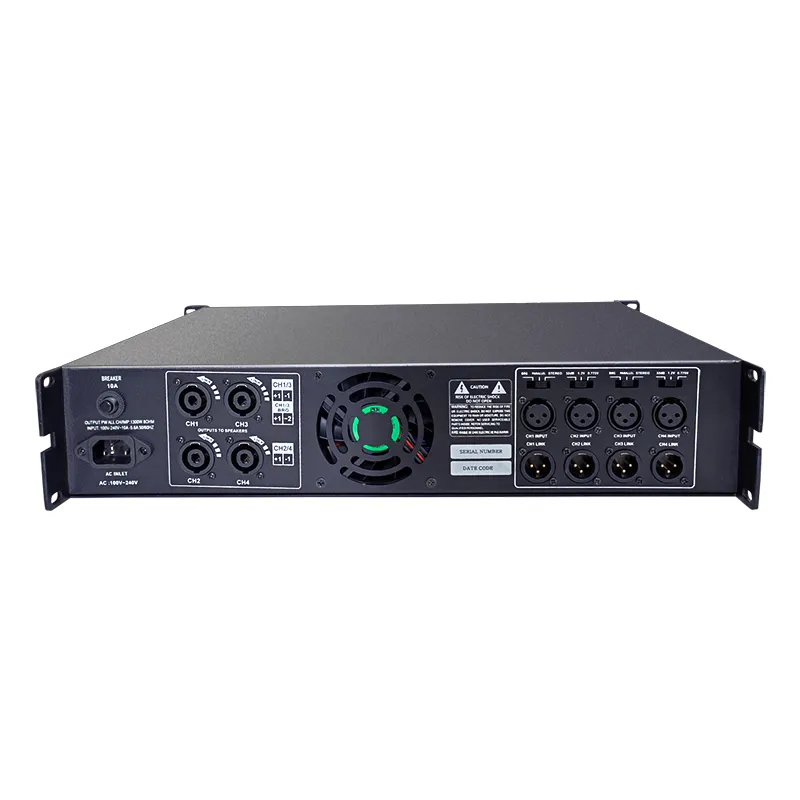

Input Connector for each channel	Convexity Side XLR, Concave Side XLR,3 Pin Connector
Output Connector for each channel	Neutrik Speakon,(The Wire for Channel one and Channel four, can be connected to two channel)
Amplifier Function and Overload Protection	Short-circuit protection,open circuit protection,overheating protection and RF protection.The Switch for Tum on/Tum off the Mute , Shut off the DC Malfunction , Active inrush Cument Limited.
Alternating current power supply (220V)	10A
Heat-Dissipating	Fan
Size	W: 483 mm ,H: 88 mm, D: 385 mm

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, start from 2014, sell to Domestic Market(50.00%), South America(14.00%), South Asia(10.00%), North America(8.00%), Eastern Europe(3.00%), Southern Europe(3.00%), Northern Europe(3.00%), Western Europe(3.00%), Southeast Asia(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Central America(1.00%), Africa(1.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?

Professional Digital Amplifier, Digital Amplifier Module, Digital Active Speaker Amplifier, DSP, Professional Audio Speaker

4. Why should you buy from us not from other suppliers?

Dedicated to developing, designing, and selling various professional audio products for the professional audio market, such as professional amplifiers, Professional Sound Column Speakers, active speaker amplifiers, amplifier modules, and self-developed DSP

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF ,EXW; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C; Language Spoken: English, Chinese
