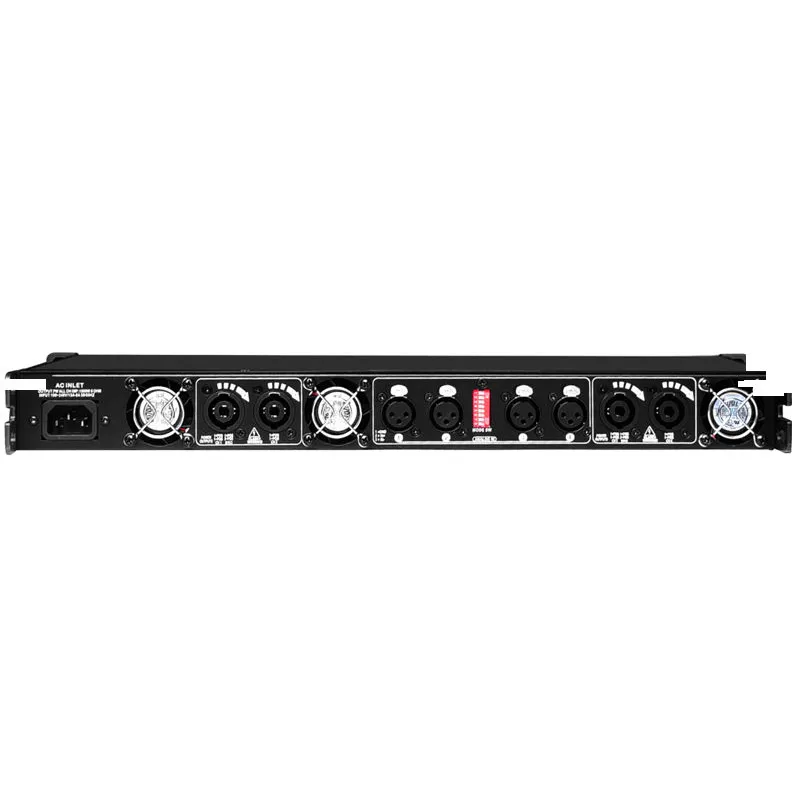

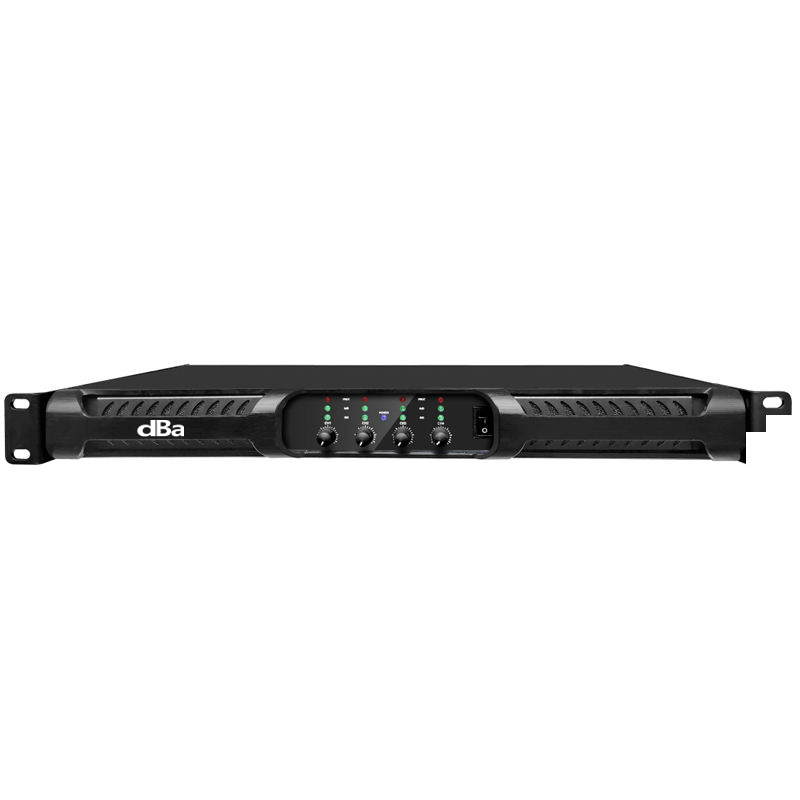

PFA6K4 800W 4 Channel Digital Professional Audio Power Amplifier PFC Class D DSP Amplifier Sound Equipment/amplifiers/speaker

1.◆◆Application scope:

On site sound reinforcement and fixed installation (such as theater, stadium, multi-function hall, large venues, outdoor mobile performances, etc.)

2.◆◆Product features

Advanced Class D output circuit.

Advanced switching mode power supply.

Heat dissipation of temperature controlled continuous variable speed fan.

Comprehensive protection circuit (thermal protection, clipping limiter, short circuit protection, etc.)

Lightweight and compact.

3.◆◆Low calorific value:

Low calorific value means that there is no need for a large heat sink, and the equipment runs quieter and has a longer life.

4. ◆◆Thin and lightweight:

Due to high efficiency and low heat dissipation requirements, the digital power amplifier can be designed to be very compact and suitable for scenes with limited space.

Inquire Now Next Product

Model	PFA2K4	PFA3K4	PFA4K4	PFA6K4
Outputs Stages
Maximum output power 100V/70V	NA	NA	650Wx4	800Wx4
Maximum output power per channel(8Ω)	300Wx4	500Wx4	650Wx4	800Wx4
Maximum output power per channel(4Ω)	500Wx4	800Wx4	1000Wx4	1200Wx4
Maximum output power per channel(2Ω)	NA	500Wx4	500Wx4	600Wx4
Maximum Bridge output power( 8Ω )	900Wx2	1600Wx2	2000Wx2	2400Wx2
Typical Distortion (8 ohms)	0.02%
Maximum Distortion	<2%
Frequency Response(20-20khz)	+/-1 dB
Noise (20 Hz-20 kHz, 32 dB Gain)	<1mv
Damping Factor (8 ohms)	5000
Output Circuitry	CLASS-D
Input Sensitivity	1.5V
Maximum Gain (1.2V setting)	32dB
Maximum Input Level	20dB
AC Power Requirements	85V-265V
Input connector	3-pin XLR, balanced siqnal input
Output connector	SPEAKON
Limiter set	Peak limiting, RM voltage limiting, RMs current limiting.
Amplifier and load protection	Above/below the specified AC voltage; Dangerous signal (clipping distortion, super high frequency, long-term RMS): DC output;Overtemperature; Short circuit; Mute sound when turning on/off.
Heat dissipation method	Air cooling,fan infinitely variable speed
Nominal Voltage voltage	110-240V 50/60Hz
Fuse	10A
Weight	8.8Kg
Size	W: 483 mm . D: 268 mm .H:44 mm
