PFA20K

From cost-effective 300W dual channel amplifiers to high-performance2000W four-channel amplifiers, we offer it all. With PFC(Power FactorCorrection)and intelligent track management, we meet all your powe!

amplifier needs.

visa

Inquire Now Next Product

Products Description

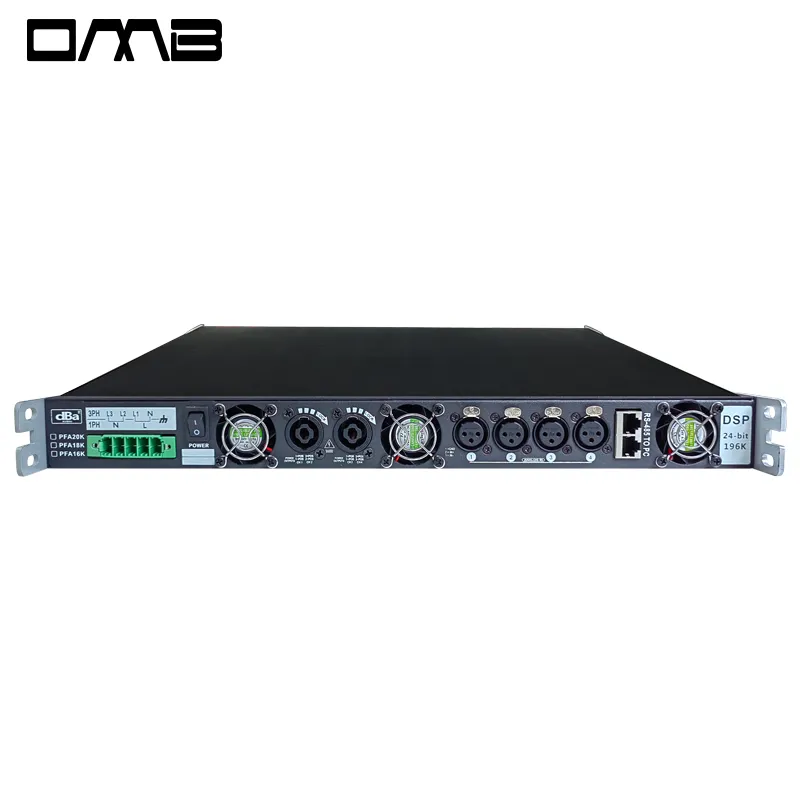

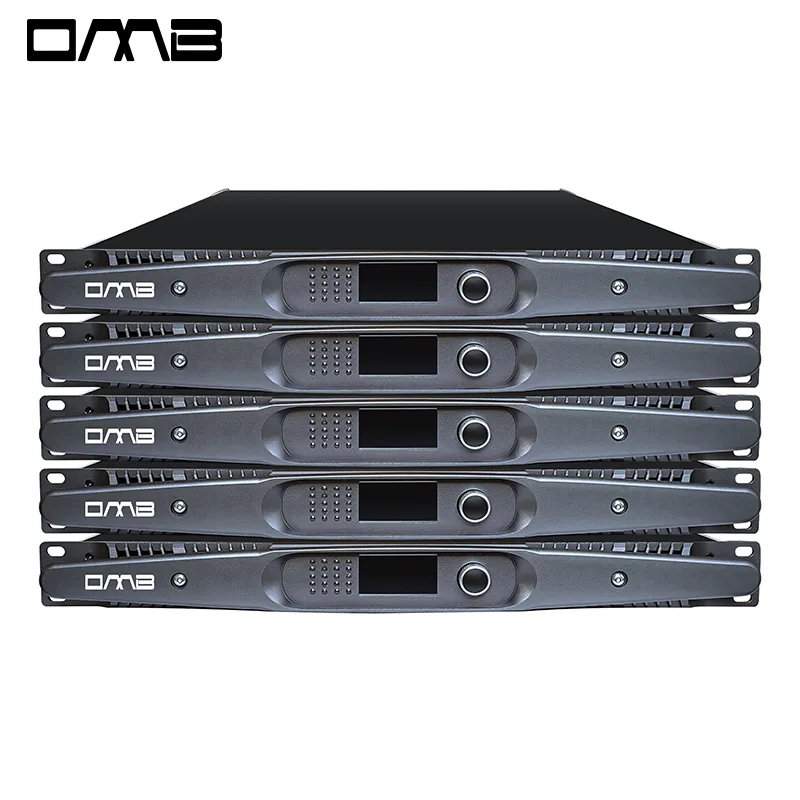

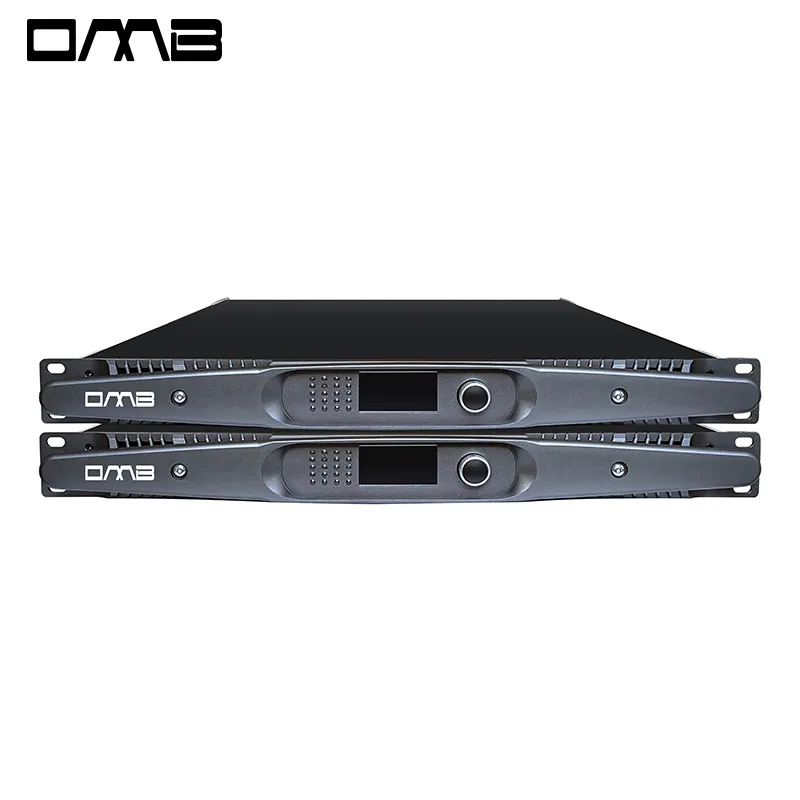

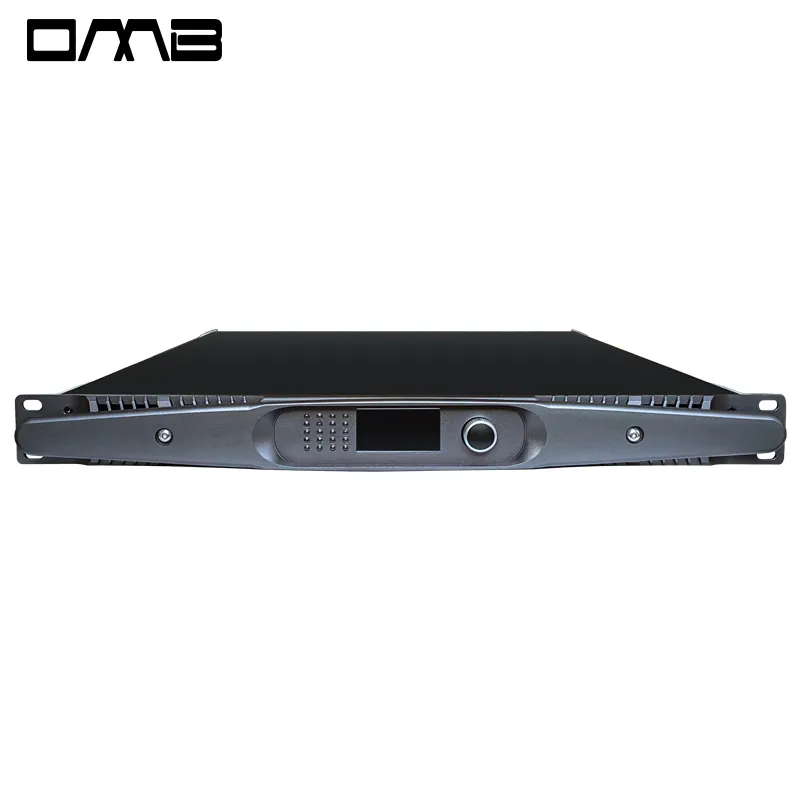

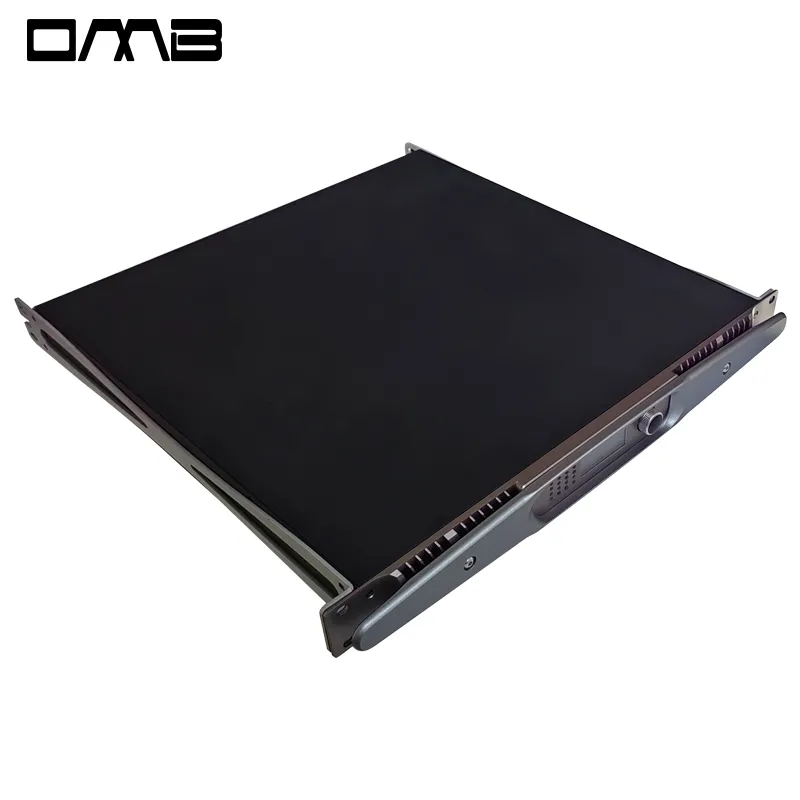

Today, we are going to introduce the PFA20K, a high-performance four-channel professional power amplifier. 8-ohm 4*2000W, 4-ohm 4*3600W, perfectly matching the driving requirements of 15-inch full-range speakers and 18-inch subwoofers.

1.It is equipped with built-in PFC (Power Factor Correction) function and supports an ultra-wide voltage input range (85V-460V), enabling it to operate stably almost anywhere in the world with power supply.

2. It features the only three-phase power supply patent technology in Asia, which further enhances power supply efficiency and system stability, making it particularly suitable for large-scale performances and fixed installation projects.

3. Quickly connect the power safety plug and it has a utility model patent

4. Intelligence and efficiency are the core advantages of PFA20K, which adopts SRM intelligent audio track management technology.

Compared to a leading brand, their product consumes over 200 watts in standby mode, while ours uses only around 60 watts. This makes our product a greener audio solution—more energy-efficient and power-saving!

5. With the dedicated DSP software, users can easily debug the system and set parameters on their computers.

PFA20K - The ideal choice for professional audio applications that pursue outstanding performance, reliability and energy efficiency.

Model Parameters

Model	PFA20K
Outputs Stages
output power 8Ω	2000Wx4
output powe 4Ω	3600wx4
output powe 2.7Ω	4500Wx4
output powe 2Ω	5600Wx4
output powe 8ΩBLT	6600Wx2
output powe 4ΩBLT	10800Wx2
Peak total output,all channels driven	20000W
DSP
Damping 80Ω 20Hz-500Hz	>5000
Conversion rate	>103V/μs
frequency response	10Hz-20 kHz
Noise	<1mv
THD	<0.5%(typical<0.01%)
Input impedance	20kQ balanced
AD/DA Converters	24Bit/96kHz
Sampling Rate Converter	24Bit/44.1kHz to 192kHz
delay	+70ms
Equalizer	Self FIR(finite impulse response),peak,high/low shelf type,all pass, band-pass,band stophigh/low-pass equalization,Linear phase(FIR), data(FIR),Butterworth、Linkwitz-Riley.
crossover	Besset:6dB/octt48
limiter	TruePower、Voltage RMS,current RMS,peak limit
AC power supply
Rated voltage	100-240V,50/80Hz
Operating range	90-260Vfrom DC to 200HZ
power factor 1/8Max output power 4Ω	>0.9
Rated voltage	173Y/100-416Y/240V 3-,3W+N+PE/3W+PE
power factor 1/8Max output power 4Ω	>0.9
Size	W:483 mm,H:44 mm,D:490 mm
