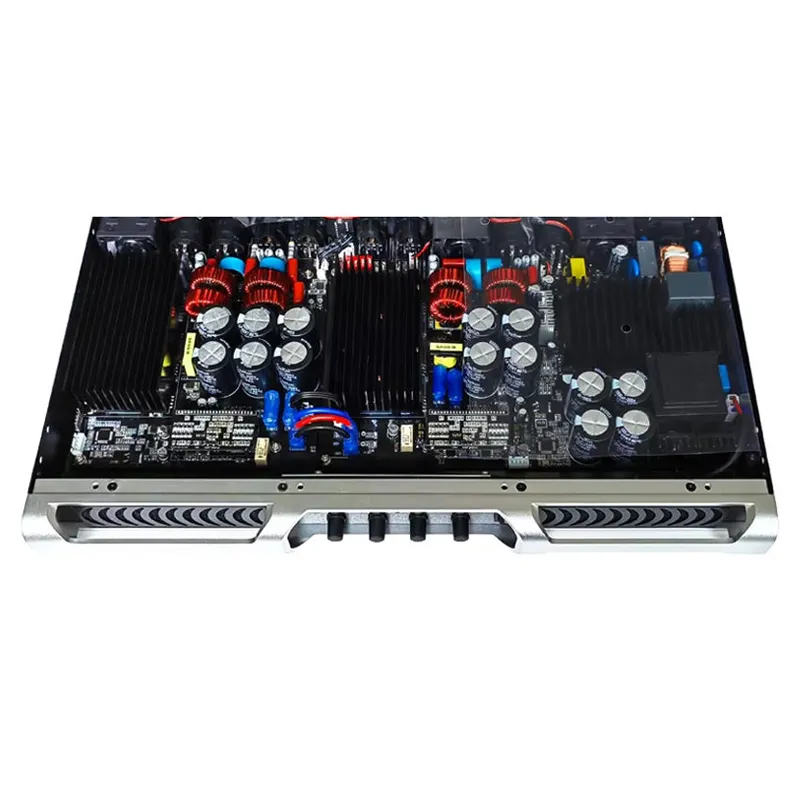

•••Advanced Class D output circuit.
•••Advanced switching mode power supply.
•••Heat dissipation of temperature controlled continuous variable speed fan.
•••Comprehensive protection circuit (thermal protection, clipping limiter, short circuit protection, etc.)
•••Lightweight and compact.
| Model | PFA6K |
| Outputs Stages | |
| 8Ω EIA 1 kHz 1% THD | 1350Wx2 |
| 4Ω EIA 1 kHz 1% THD | 2000Wx2 |
| BRIDGE POWER(8Ω) | 4000Wx1 |
| OUTPUT POWER, BRIDGE MONO MODE | |
| Typical Distortion | |
| 8 ohms | 0.02% |
| Maximum Distortion | <2% |
| Frequency Response (8 ohms) | 20-20KHZ |
| Noise (20 Hz-20 kHz, 32 dB Gain) | <1mv |
| Damping Factor (8 ohms) | 500 |
| Output Circuitry | CLASS-D |
| The Function for Color Screen | 1.The Working Voltage,Currency,Temperature,and the impedance for each channel,operating Rower. |
| Input Sensitivity | 1v |
| Maximum Gain (1.2V setting) | 36dB |
| Maximum Input Level | 26dB |
| AC Power Requirements | 85V-265V |
| Size | W: 483 mm , D: 385 mm,H: 88 mm |
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, start from 2014, sell to Domestic Market(50.00%), South America(14.00%), South Asia(10.00%), North America(8.00%), Eastern Europe(3.00%), Southern Europe(3.00%), Northern Europe(3.00%), Western Europe(3.00%), Southeast Asia(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Central America(1.00%), Africa(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Professional Digital Amplifier, Digital Amplifier Module, Digital Active Speaker Amplifier, DSP, Professional Audio Speaker
4. Why should you buy from us not from other suppliers?
Dedicated to developing, designing, and selling various professional audio products for the professional audio market, such as professional amplifiers, Professional Sound Column Speakers, active speaker amplifiers, amplifier modules, and self-developed DSP
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF ,EXW; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C; Language Spoken: English, Chinese
Want to speak to us?
Our team of experienced experts can't wait to help you find the right solution for your business.
