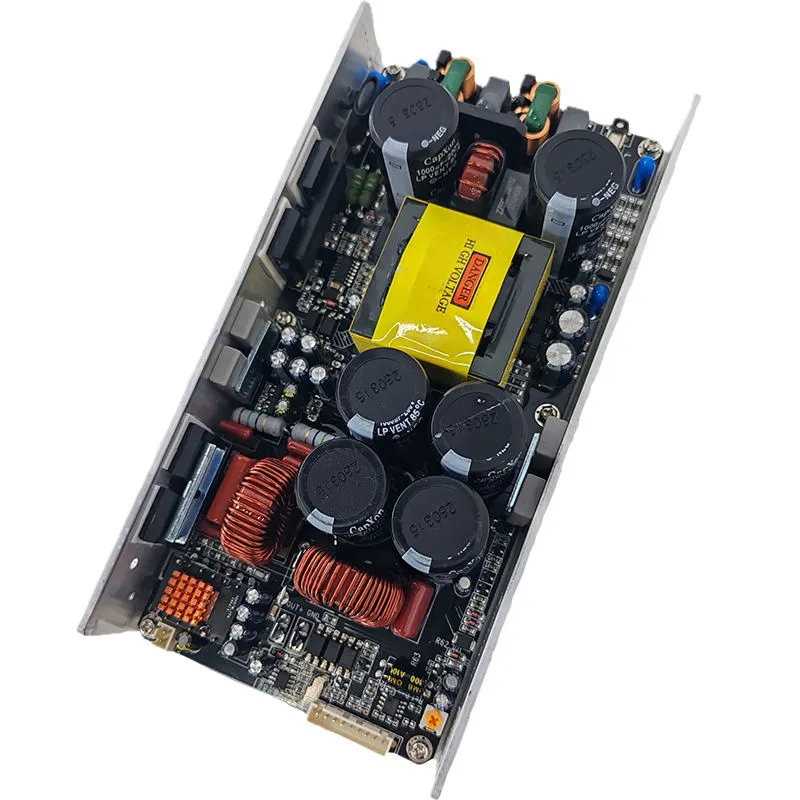

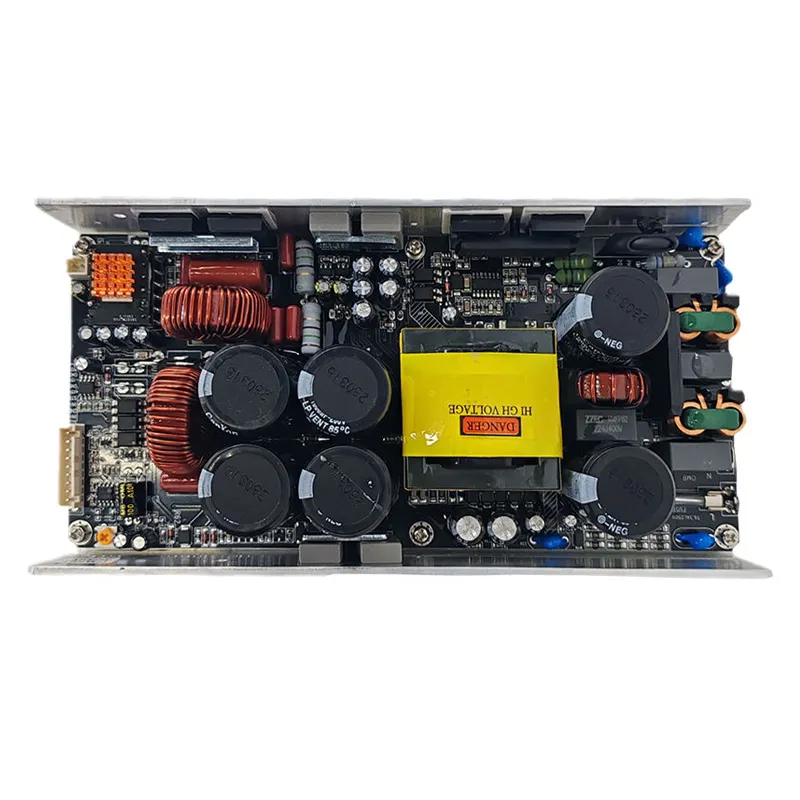

This product is a single-channel 1000W power amplifier module, designed to deliver a high-performance digital amplifier solution that is cost-effective, high-quality, and energy-efficient. It features an LLC switching power supply and incorporates multiple protection circuits to ensure stable operation in complex application scenarios and under high-voltage conditions.
Description
The 1000W Mono Channel Class D Professional Audio Sound Amplifier Module is engineered for high-power audio applications that demand exceptional performance, reliability, and efficiency. Utilizing advanced Class D amplifier technology, this module delivers powerful and clean sound output while maintaining low energy consumption and minimal heat generation.
Designed for professional audio manufacturers, active speaker systems, subwoofers, PA equipment, and commercial sound installations, this amplifier module provides the ideal solution for achieving powerful low-frequency performance and high-output sound reinforcement.
With its compact design, high efficiency, and stable operation, the 1000W mono amplifier module is widely used in modern professional audio products and OEM audio equipment manufacturing.
Model | PHA201 | PHA301 | PHA601 | PHA801 | PHA1001 | PHA2001 |
| 100VOUT 1 kHz 1% THD | 200Wx1 | 300Wx1 | 600Wx1 | 800Wx1 | 1000Wx1 | 2000Wx1 |
| Frequency | 20Hz-20KHz(+/-2dB) | |||||
| Typical Distortion | ||||||
| 100VOUT | 0.5% | |||||
Maximum Distortion (20 Hz-20 kHz, 1 dB below rated power) | 1% | |||||
| Frequency Response (8 ohms) | 20 Hz-20 kHz, ±0.2 dB | |||||
| Noise (20 Hz-20 kHz, 32 dB Gain) | <1mv | |||||
| Damping Factor (8 ohms) | >600 | |||||
| Output Circuitry | Class D | |||||
| Input Sensitivity | ||||||
| 26 dB Setting | 1V | |||||
| 32 dB Setting | 2.67V | |||||
| Maximum Gain (1.2V setting) | 30dB | |||||
| Maximum Input Level | ||||||
| 1.2V setting | 10 V (+22 dBu) | |||||
| AC Power Requirements | ||||||
| 120V 50/60 Hz | 10A | |||||
| 230V 50 Hz | 6.3A | |||||
| Weight | 1KG | |||||
| Size | W: 206mm ,D: 107mm ,H: 55 mm | |||||
As a professional amplifier module manufacturer, we provide flexible OEM and ODM solutions to meet different project requirements.
Customization options include:
Output power adjustment
DSP integration
Power supply matching
Input interface customization
Connector configuration
PCB layout optimization
DSP tuning
Audio processing algorithms
Crossover settings
EQ presets
Limiter configuration
User control functions
Private label manufacturing
Custom packaging
Logo printing
Product labeling
User manuals
Key Features
The amplifier module delivers up to 1000 watts of mono output power, providing strong and dynamic sound performance for demanding professional audio environments.
Ideal for:
High-power subwoofers
Active PA speakers
Line array systems
Professional sound reinforcement
Commercial audio systems
Performance venues
The high output capability ensures excellent bass response, increased sound pressure levels, and reliable audio performance.
Class D architecture offers significant advantages over traditional amplifier designs:
Higher energy efficiency
Reduced power consumption
Lower heat generation
Compact amplifier size
Improved reliability
Longer operational lifespan
This allows manufacturers to design lighter and more efficient audio equipment without sacrificing sound quality.
The amplifier module is designed to provide:
Low Total Harmonic Distortion (THD)
High signal-to-noise ratio
Excellent dynamic range
Accurate frequency response
Powerful low-frequency reproduction
These characteristics help deliver clean, detailed, and professional-grade audio performance.
The amplifier board features a compact layout that simplifies integration into various audio products while maximizing available enclosure space.
Suitable for:
Active speaker cabinets
Powered subwoofers
Portable PA systems
Professional audio racks
Custom audio projects
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, start from 2014, sell to Domestic Market(50.00%), South America(14.00%), South Asia(10.00%), North America(8.00%), Eastern Europe(3.00%), Southern Europe(3.00%), Northern Europe(3.00%), Western Europe(3.00%), Southeast Asia(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Central America(1.00%), Africa(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Professional Digital Amplifier, Digital Amplifier Module, Digital Active Speaker Amplifier, DSP, Professional Audio Speaker
4. Why should you buy from us not from other suppliers?
Dedicated to developing, designing, and selling various professional audio products for the professional audio market, such as professional amplifiers, Professional Sound Column Speakers, active speaker amplifiers, amplifier modules, and self-developed DSP
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF ,EXW; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C; Language Spoken: English, Chinese
