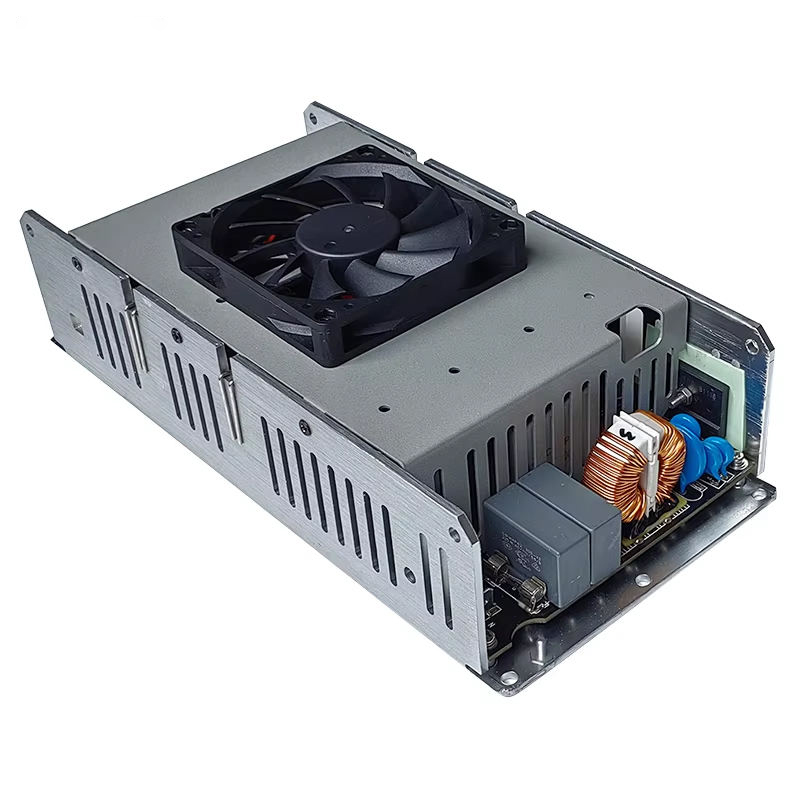

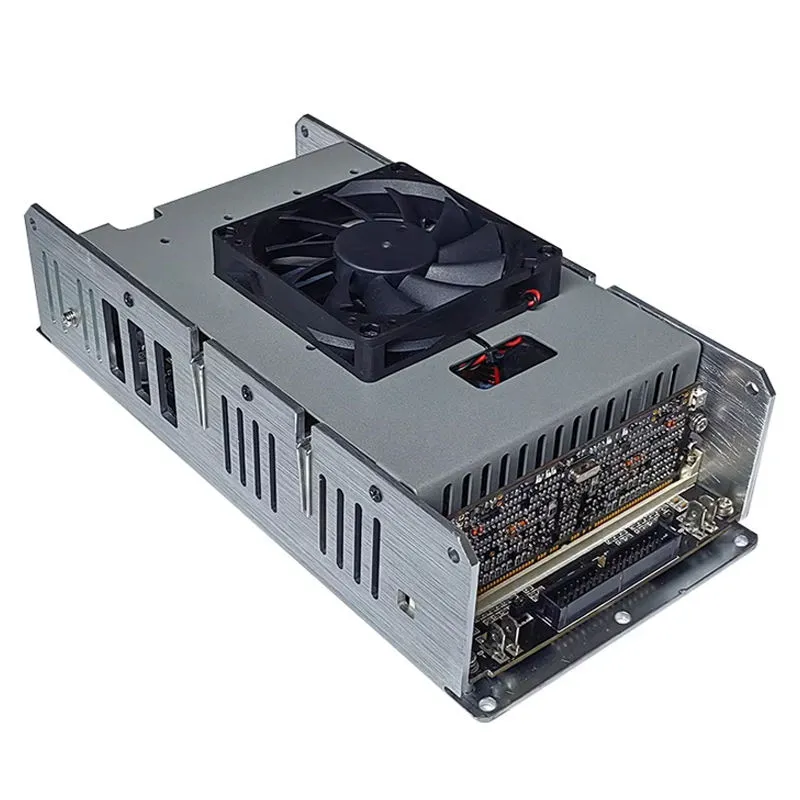

PFA6000 Green Audio Power PFC 2000 Watts Class D 2 Channels Amplifier Module for Active Speaker 4000w

This product is a 2-channel 1350W power amplifier module. Through innovative circuit design and functional planning, it resolves the issue of frequency instability in the high-frequency range of digital circuits, delivering high-quality audio amplification. The product features a frequency locking function, incorporates Power Factor Correction (PFC), and has obtained Green Audio Amplifier certification. It is equipped with multiple protection circuits to ensure stable performance in complex and high-voltage application scenarios.

Inquire Now Next Product

Model	PFA6000
OUTPUT POWER PER CHANNEL, STERO MODE, both channels driven
8Ω EIA 1 KHz 1% THD	1350Wx2
4Ω EIA 1 KHz 1% THD	2000Wx2
OUTPUT POWER, BRIDGE MONO MODE
8Ω EIA 1 KHz 1% THD	4000Wx1
Typical Distortion
8 ohms	0.05
4 ohms	0.1
Maximum Distortion (20 Hz-20 kHz, 1 dB below rated power)
4 to 8 ohms	0.05%
Frequency Response (8 ohms)	20 Hz-20 kHz, ±0.2 dB
Noise (20 Hz-20 kHz, 32 dB Gain)	<1mv
Damping Factor (8 ohms)	>600
Output Circuitry	Class D
Input Sensitivity
26 dB Setting	1v
32 dB Setting	2.67V
Maximum Gain (1.2V setting)	36dB
Maximum Input Level
1.2V setting	10 V (+22 dBu)
AC Power Requirements	90v~260v PFC
120V 50/60 Hz	20A
230V 50 Hz	10A
Weight	1.8KG
Size	W:248mm，D:122mm.H:62 mm
