PDA1001 8 Ohms Power 1000PFA3002 Advanced Class D 3600W 2-Channel Amplifier Module: PFC, Power Audio Track Following, Green Audio Power Watts Class D Subwoofer Speaker Amplifier Module

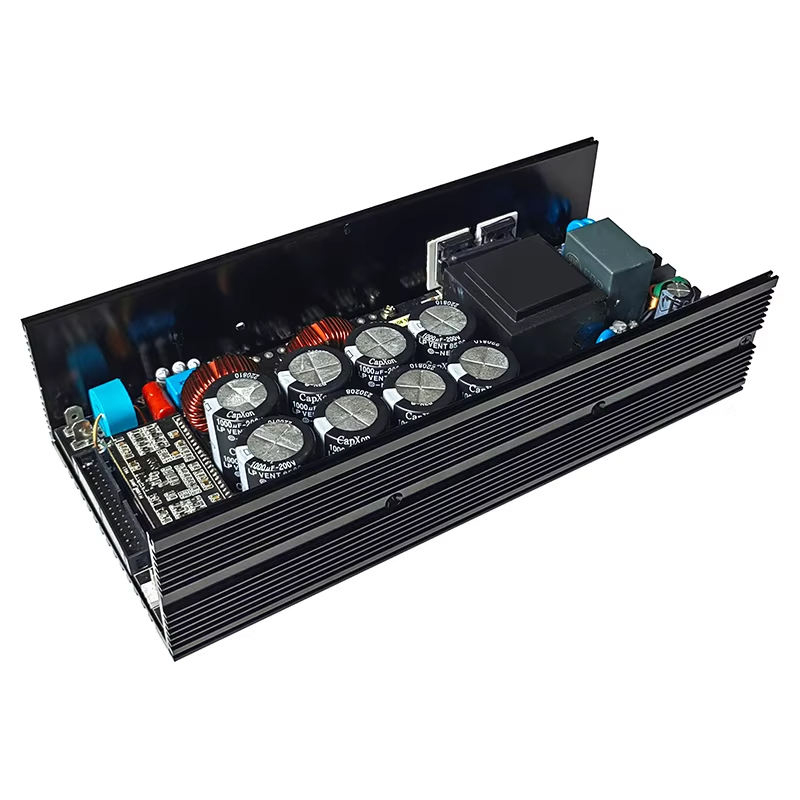

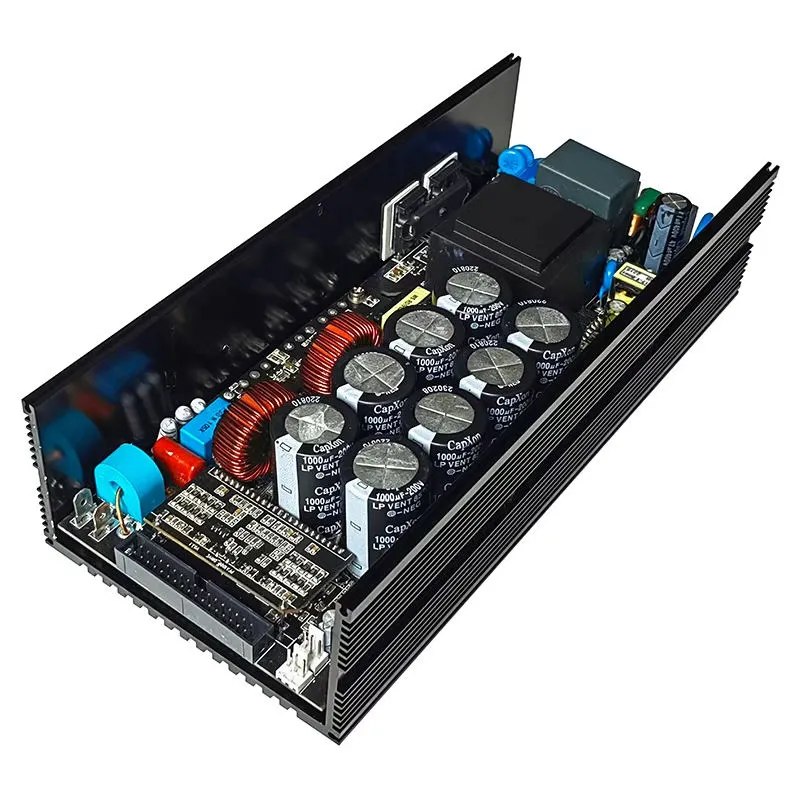

This product is a 2-channel 1000W power amplifier module. Through innovative circuit design and functional planning, it addresses the typical challenges of traditional high-power amplifiers, such as thermal management difficulties and excessive power consumption. The module is equipped with an SRM Intelligent Track Management System, incorporates Power Factor Correction (PFC), and has obtained Green Audio Amplifier certification. It also includes multiple protection circuits to ensure stable and reliable performance in complex scenarios and under high-vo

Inquire Now Next Product

Model	PFA3200
OUTPUT POWER PER CHANNEL, STERO MODE, both channels driven
8Ω EIA 1 KHz 1% THD	1000Wx2
4Ω EIA 1 KHz 1% THD	1800Wx2
OUTPUT POWER, BRIDGE MONO MODE
8Ω EIA 1 KHz 1% THD	3600Wx1
Typical Distortion
8 ohms	0.05
4 ohms	0.1
Maximum Distortion (20 Hz-20 kHz, 1 dB below rated power)
4 to 8 ohms	0.05%
Frequency Response (8 ohms)	20 Hz-20 kHz, ±0.2 dB
Noise (20 Hz-20 kHz, 32 dB Gain)	<1mv
Damping Factor (8 ohms)	>600
Output Circuitry	Class D
Input Sensitivity
26 dB Setting	1v
32 dB Setting	2.67V
Maximum Gain (1.2V setting)	36/32/34dB
Maximum Input Level
1.2V setting	10 V (+22 dBu)
AC Power Requirements
120V 50/60 Hz	15A/20A
230V 50 Hz	10A
Weight	1.5KG
Size	W:244mm，D:110mm.H:60 mm
