Home / Products / Active Module Amplifier / PFA8000+CQ380 Professional Audio Active Speaker Sound Amplifier Module

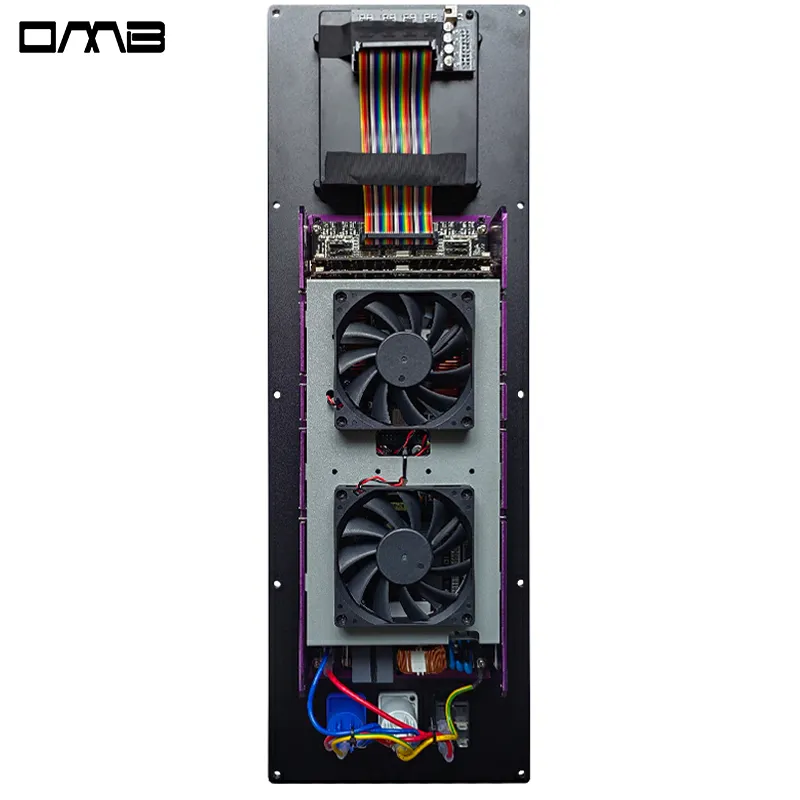

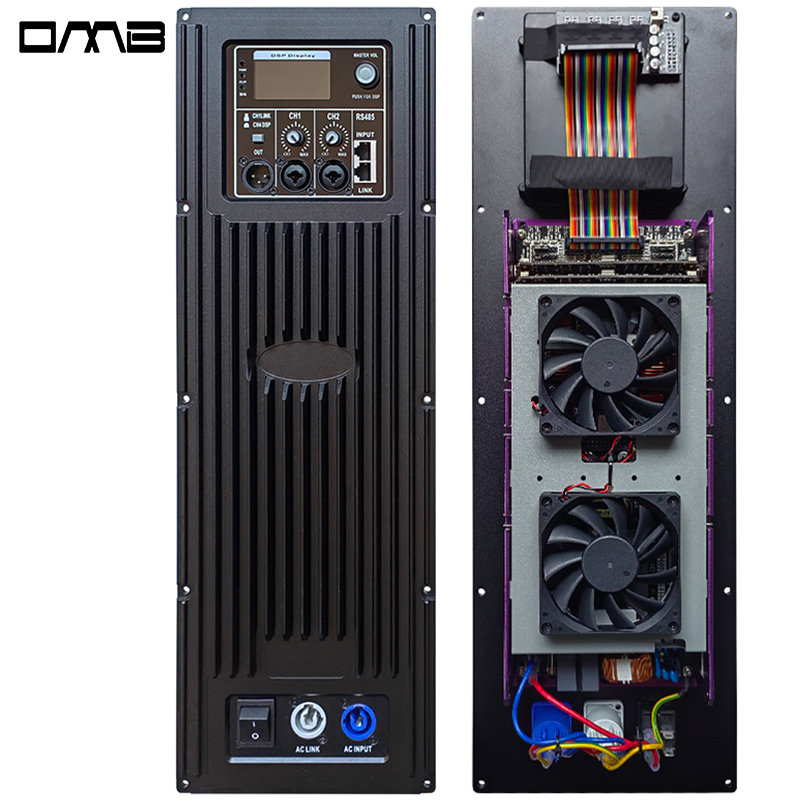

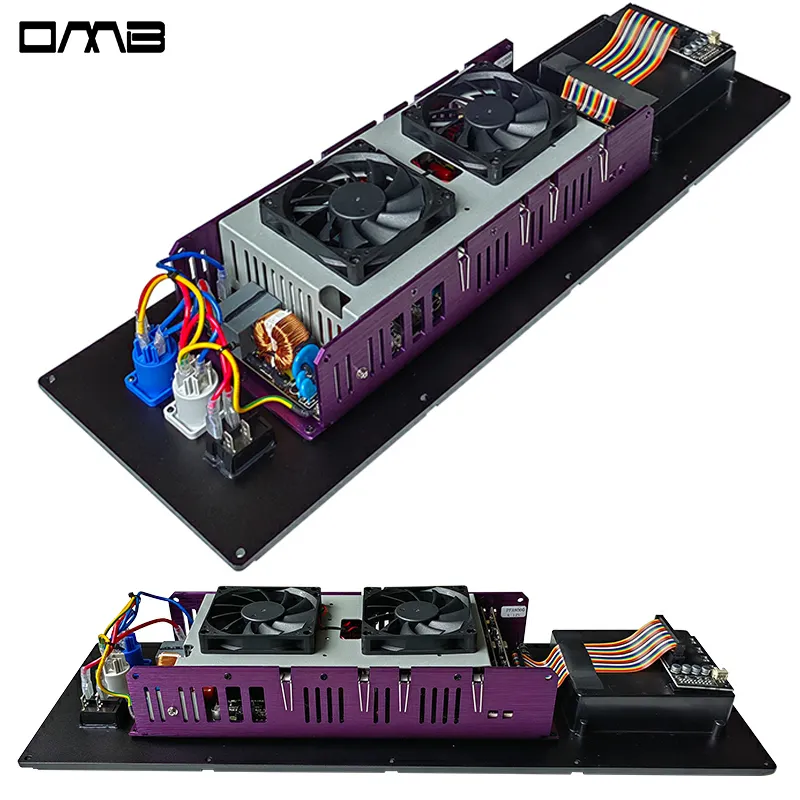

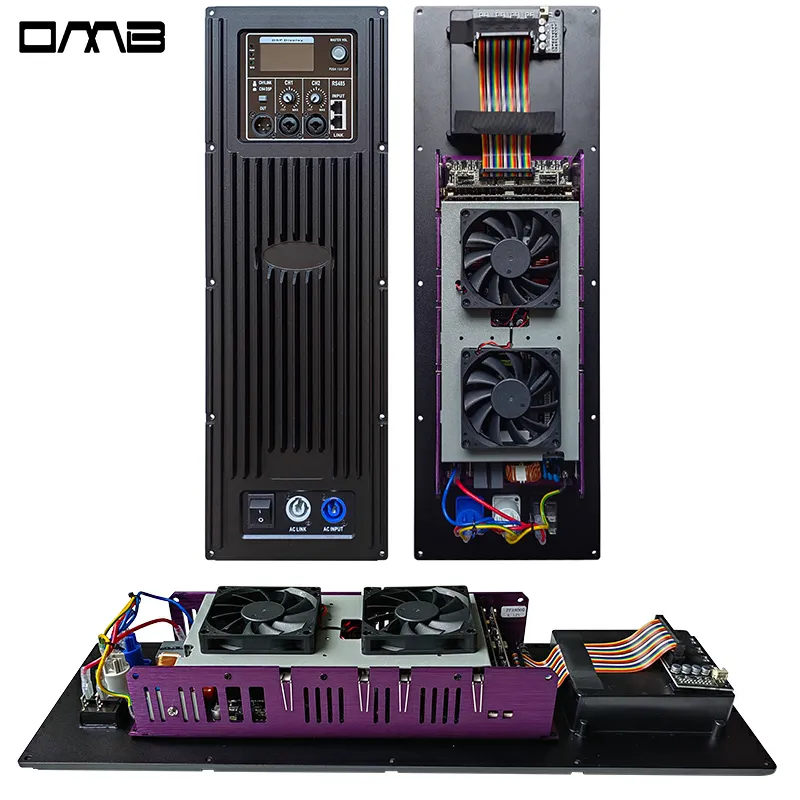

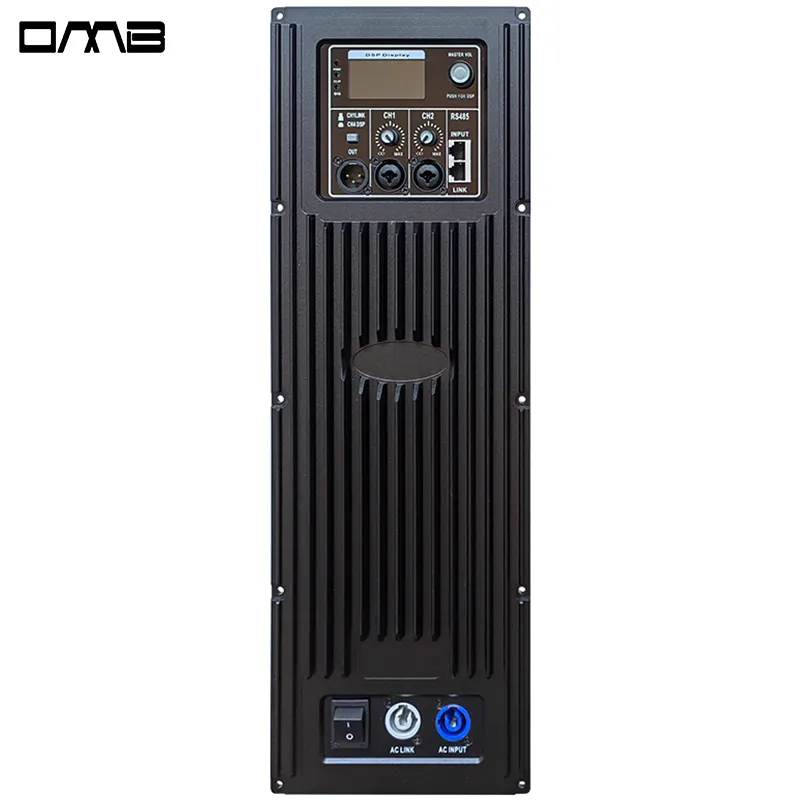

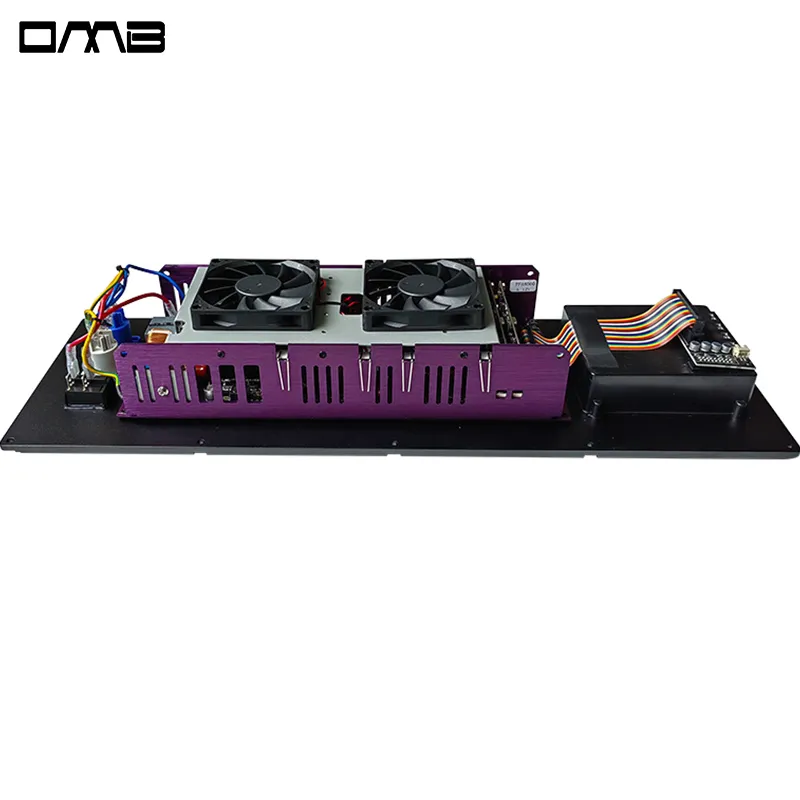

PFA8000+CQ380 Professional Audio Active Speaker Sound Amplifier Module

1.Four-channel 8Ω 4*1300W,4Ω 4*1500W, DSP with FIR function, can be used to drive dual 18-inch subwoofers.

2. It is equipped with PFC power factor correction function and can be used within the range of 90-260V.

3. It adopts SRM intelligent audio track management technology, which not only ensures a constant output power under different input voltages, but also intelligently and dynamically adjusts power consumption. In standby mode, it maintains extremely low power consumption, eliminating the need for full-load operation throughout the process. It has a remarkable energy-saving effect and effectively controls the fan temperature, thereby extending the service life of the equipment.

4. With the dedicated DSP software, users can easily debug the system and set parameters on their computers.

5. Equipped with electronic interference certification and circuit hardware protection, it truly ensures stable quality and excellent performance.

Inquire Now Next Product

Model Parameters

Model	PFA8000+CQ380
Audio
Power/8Ω EIA 1kHz 1%THD	1300Wx4
Power/4Ω EIA 1 kHz 1%THD	1500Wx4
Typical Distortion	0.05%
Frequency Response(8 ohms)	20 Hz-20 kHz,±0.2 dB
Damping Factor(8 ohms)	>600
Noise(20 Hz-20 kHz,32 dB Gain)	<1mv
Maximum Gain(1.2V setting)	36dB
DSP
Analog Inputs and output(single ended)	4in 4 out
Input-to-output latency	510μs
Gain	36dB
Dynamic Range(unity gain)	typ.106dB(A)
THD(@OdBu,1kHz,unity gain)	<0.01%
Frequency Response	20 Hz-20 kHz,±0.5 dB
Sample rate	96kHz
Delay	100ms
PEQ(each input and output)	7
Grouping EQ(each input)	31
Crossover(each input,LPF and HPF)	Butterworth,Linkwitz,Bessel 6dB/oct~48dB/oct
Crossover(each output,LPF and HPF)	Butterworth,Linkwitz,Bessel 6dB/oct~48dB/oct
Limiter attack	8040 db
Limiter release	23 db
S/N	114dB
Noise Gata	-100-0dB
Fir	1024(4*256)taps
Size	W:175 mm,D:455 mm,H:82 mm
