1.Four-channel 8Ω 4*800W,4Ω 4*1200W, DSP with FIR function.

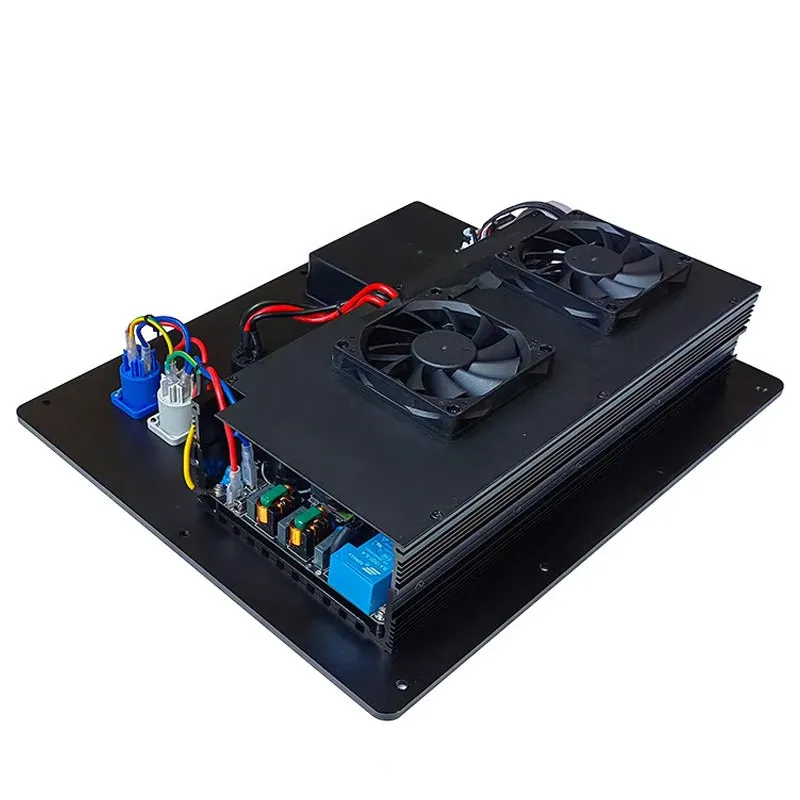

2. It is equipped with a variable-speed fan cooling system, effectively controlling the fan temperature and extending the service life of the equipment.
3.LLC switching power supply design, featuring electronic interference certification and circuit hardware protection, truly ensures stable quality and excellent performance.
4. Support product customization.
| Model | PDA4600+CQ380 | PDA4800+CQ380 |
| Audio | ||
| Power/8Ω EIA 1 kHz 1% THD | 600Wx4 | 800Wx4 |
| Power/4Ω EIA 1 kHz 1% THD | 900Wx4 | 1200Wx4 |
| Typical Distortion | 0.05% | |
| Frequency Response (8 ohms) | 27 Hz-20 kHz, ±0.2 dB / 28 Hz-20 kHz, ±0.2 dB | |
| Damping Factor (8 ohms) | >600 | |
| Noise (20 Hz-20 kHz,32 dB Gain) | <1mv | |
| Maximum Gain (1.2V setting) | 30dB | |
| DSP | ||
| Analog Inputs and output (single ended) | 2 in 4 out | |
| Input-to-output latency | 510μs | |
| Gain | 36dB | |
| Dynamic Range (unity gain) | typ.106dB(A) | |
| THD (@ 0dBu, 1kHz, unity gain) | <0.01% | |
| Frequency Response | 20 Hz-20 kHz, ±0.5 dB | |
| Sample rate | 96kHz | |
| Delay | 10ms | |
| PEQ (each input and output) | 7 | |
| Grouping EQ (each input) | 31 | |
| Crossover (each input, LPF and HPF) | Butterworth,Linkwitz,Bessel 6dB/oct~48dB/oct | |
| Crossover (each output, LPF and HPF) | Butterworth,Linkwitz,Bessel 6dB/oct~48dB/oct | |
| Limiter attack | 8040 db | |
| Limiter release | 23 db | |
| S/N | 114dB | |
| noiseGata | -100-0dB | |
| Fir | 1024(4*256)taps | |
| Size | W: 360 mm , D: 300 mm , H: 82 mm | |
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, start from 2014, sell to Domestic Market(50.00%), South America(14.00%), South Asia(10.00%), North America(8.00%), Eastern Europe(3.00%), Southern Europe(3.00%), Northern Europe(3.00%), Western Europe(3.00%), Southeast Asia(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Central America(1.00%), Africa(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Professional Digital Amplifier, Digital Amplifier Module, Digital Active Speaker Amplifier, DSP, Professional Audio Speaker
4. Why should you buy from us not from other suppliers?
Dedicated to developing, designing, and selling various professional audio products for the professional audio market, such as professional amplifiers, Professional Sound Column Speakers, active speaker amplifiers, amplifier modules, and self-developed DSP
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF ,EXW; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C; Language Spoken: English, Chinese
