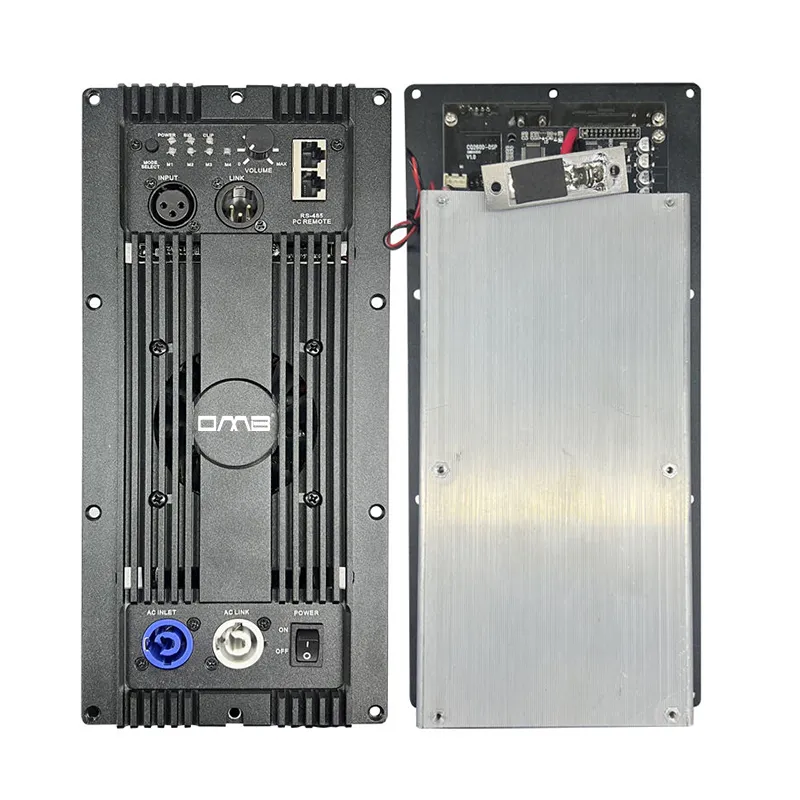

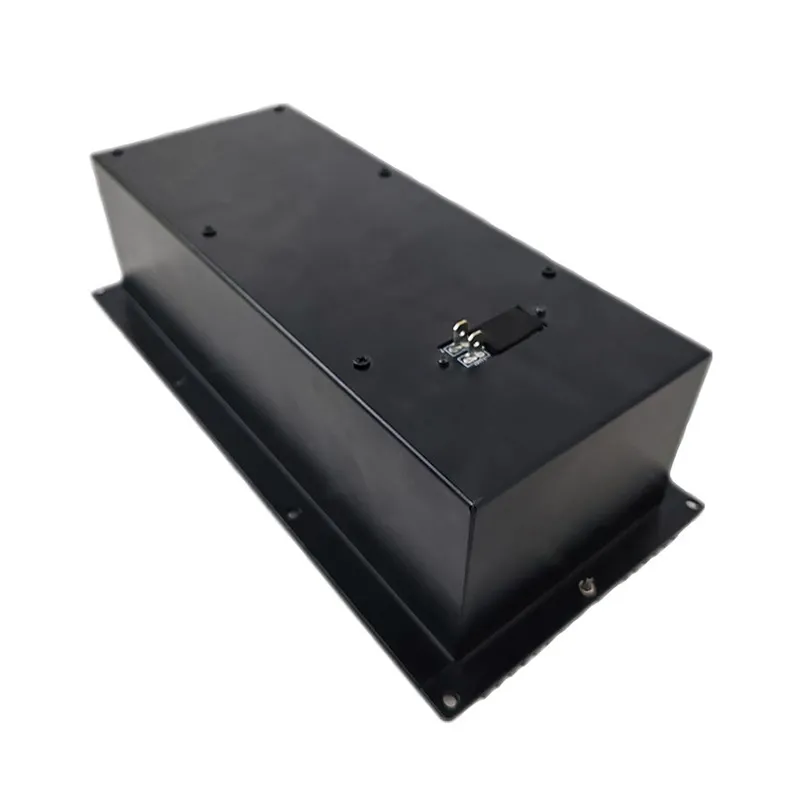

1. Single-channel 8Ω 1000W,4Ω 1200W.
2. It is equipped with a variable-speed fan cooling system, effectively controlling the fan temperature and extending the service life of the equipment.
3. With the dedicated DSP software, users can easily debug the system and set parameters on their computers. There are multiple DSPS to choose from, and product customization is supported.
4.LLC switching power supply design, featuring electronic interference certification and circuit hardware protection, truly ensures stable quality and excellent performance.
| Model | PDA601+CQ260D | PDA801+CQ260D | PDA1001+CQ260D |
| Audio | |||
| Power/8Ω EIA 1 kHz 1% THD | 600Wx1 | 800Wx1 | 1000Wx1 |
| Power/4Ω EIA 1 kHz 1% THD | 900Wx1 | 1200Wx1 | 1200Wx1 |
| Typical Distortion | 0.05% | ||
| Frequency Response (8 ohms) | 20Hz-20 kHz, ±0.2 dB | ||
| Damping Factor (8 ohms) | >600 | ||
| Noise (20 Hz-20 kHz,32 dB Gain) | <1mv | ||
| Maximum Gain (1.2V setting) | 32dB | ||
| DSP | |||
| Analog Inputs and output (single ended) | 1 in 2 out | ||
| Input-to-output latency | 420μs | ||
| Gain | 36dB | ||
| Dynamic Range (unity gain) | typ.95dB(A) | ||
| THD (@ 0dBu, 1kHz, unity gain) | <0.01% | ||
| Frequency Response | 20 Hz-20 kHz, ±0.5 dB | ||
| Sample rate | 48kHz | ||
| Delay | 10ms | ||
| PEQ (each input and output) | 7 | ||
| Grouping EQ (each input) | 7 | ||
| Crossover (each input, LPF and HPF) | 24dB/Oct | ||
| Crossover (each output, LPF and HPF) | Butterworth,Linkwitz,Bessel 6dB/oct~24dB/oct | ||
| Limiter attack | 8040 db | ||
| Limiter release | 23 db | ||
| S/N | 101dB | ||
| noiseGata | -100-0dB | ||
| Fir | NA | ||
| Size | W: 301.6mm , D: 142 mm , H: 60 mm | ||
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, start from 2014, sell to Domestic Market(50.00%), South America(14.00%), South Asia(10.00%), North America(8.00%), Eastern Europe(3.00%), Southern Europe(3.00%), Northern Europe(3.00%), Western Europe(3.00%), Southeast Asia(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Central America(1.00%), Africa(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Professional Digital Amplifier, Digital Amplifier Module, Digital Active Speaker Amplifier, DSP, Professional Audio Speaker
4. Why should you buy from us not from other suppliers?
Dedicated to developing, designing, and selling various professional audio products for the professional audio market, such as professional amplifiers, Professional Sound Column Speakers, active speaker amplifiers, amplifier modules, and self-developed DSP
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF ,EXW; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C; Language Spoken: English, Chinese
Want to speak to us?
Our team of experienced experts can't wait to help you find the right solution for your business.
